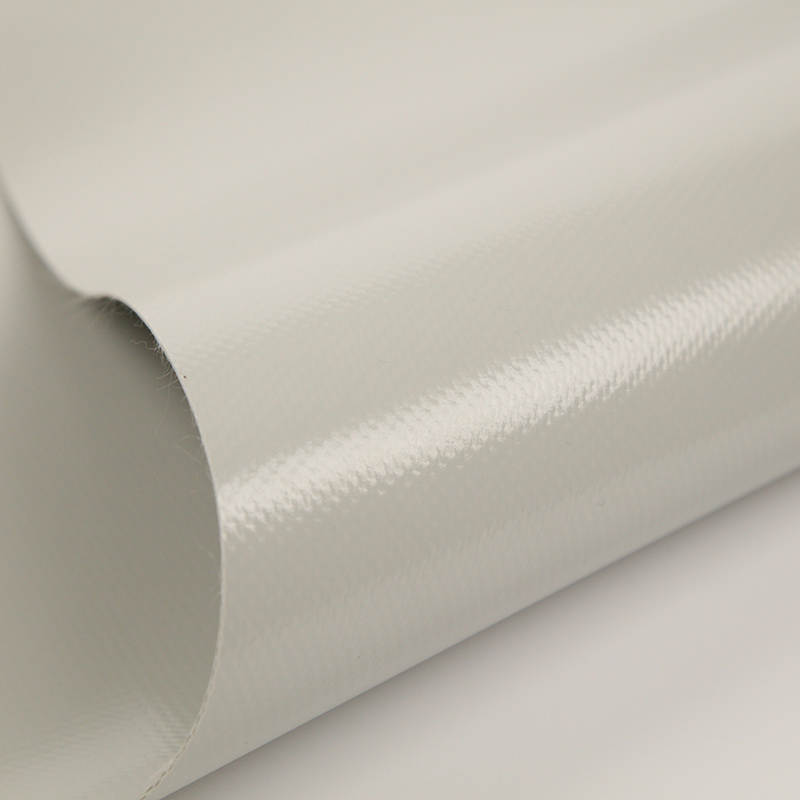

Superior Strength 1050gsm PVC Membrane Structure Fabric Tarpaulin with Enhanced Durability

Product Details


Place of Origin:China
Brand Name:YTARP

Certification:SGS REACH ROHS ISO9001
PVC Tarpaulin Daily Output:50000SQMS



Payment & Shipping


Minimum Order Quantity:3000SQMS
Packaging Details:craft paper with pe foam
Supply Ability:60000sqms/month
Delivery Port:Shanghai/Ningbo



Quick detail


Application:Outdoor-Tent,Outdoor-Awning,Outdoor-Agriculture,Outdoor-Industry

Weight: 1050gsm

Thickness:0.90mm

Color:can be customized

Roll Length:50m

Width:up to 5.1m

Technology:Knife Coated

Function:Water Resistant, Flame Retardant,Anti-Mildew, Anti-UV,Tear-Resistant,Abrasion-Resistant,Oilproof

Advantage:weldable, weatherproof,water repellent,self-cleaning,durable,anti-age



1050gsm pvc coated tarpaulin for membrane structure


Mechanical Properties

Total Weight

1050gsm

DIN EN ISO 2286-2



Coating Material

PVC





Base Fabric

100%Polyester

DIN ISO 2076



Fabric Density

1430Dtex 30x30

DIN ISO 2076



Surface Finish

Double -side PVDF





Breaking Strength Warp

6000N/5cm

DIN EN IS01421-1



Breaking Strength Weft

5500N/5cm

DIN EN IS01421-1



Tear Strength Warp

900N

DIN53363:2003



Tear Strength Weft

800N

DIN53363:2003



Adhesion

150N/5cm

ISO2411:2017









Physical Properties

Temperature Resistance

-40/+70℃

-40/+70℃



Welding Adhesion

150N/5CM

IVK 3.13



Light Fastness

7-8

ISO 105 B02:2014



Fire Behaviour

B1 B2 M1 M2

DIN 4102-1



Flex Resistance

At least 100000 bends

DIN 53359A



Reaction To Fire

B(fl)-s1

EN 13501+A1:2009


At Yatai, we pride ourselves on the development of our distinct 1050gsm PVC membrane structure fabric, a uniquely designed PVC tarpaulin that has successfully been utilized in a multitude of global projects. As the pioneers of the first-ever PVC coated membrane with weldable PVDF lacquering, we hold a position at the forefront of innovation within the industry. This specially crafted PVC structure fabric is more than just a protective shield, it’s a testimony to the prowess of modern engineering. It exhibits superior strength due to the high-density 1050gsm PVC, ensuring its robustness while remaining pliable for various applications. The notable features of this fabric include its increased longevity, resistance to external factors, and remarkable adaptability, making it an ideal candidate for a vast range of projects.

YATAI 1050gsm pvc membrane structure fabric is the first membrane fabric with weldable PVDF lacquering,has been implemented in plenty of projects all around the world.The fabric is also reinforce with titanium dioxide protection.

MOQ:3000SQMS

The secret to the impressive durability of our product lies in the distinct PVC tensile membrane used in its production. This enables the tarpaulin to preserve its physical properties under the onslaught of harsh environmental conditions. Furthermore, the integration of a weldable PVDF lacquer enhances the product's resilience, paving the way for its extended lifespan. The 1050gsm PVC membrane tarpaulin showcases a perfect blend of aesthetic appeal and practical design, catered to satisfy the most demanding needs of our clients. Each component of the product testify to Yatai's commitment to quality and the drive to offer solutions that push the boundaries of conventional tarpaulin applications. Experience the unparalleled reliability of our PVC membrane structure fabric tarpaulin, redefining the standards of durability and strength in the industry.
